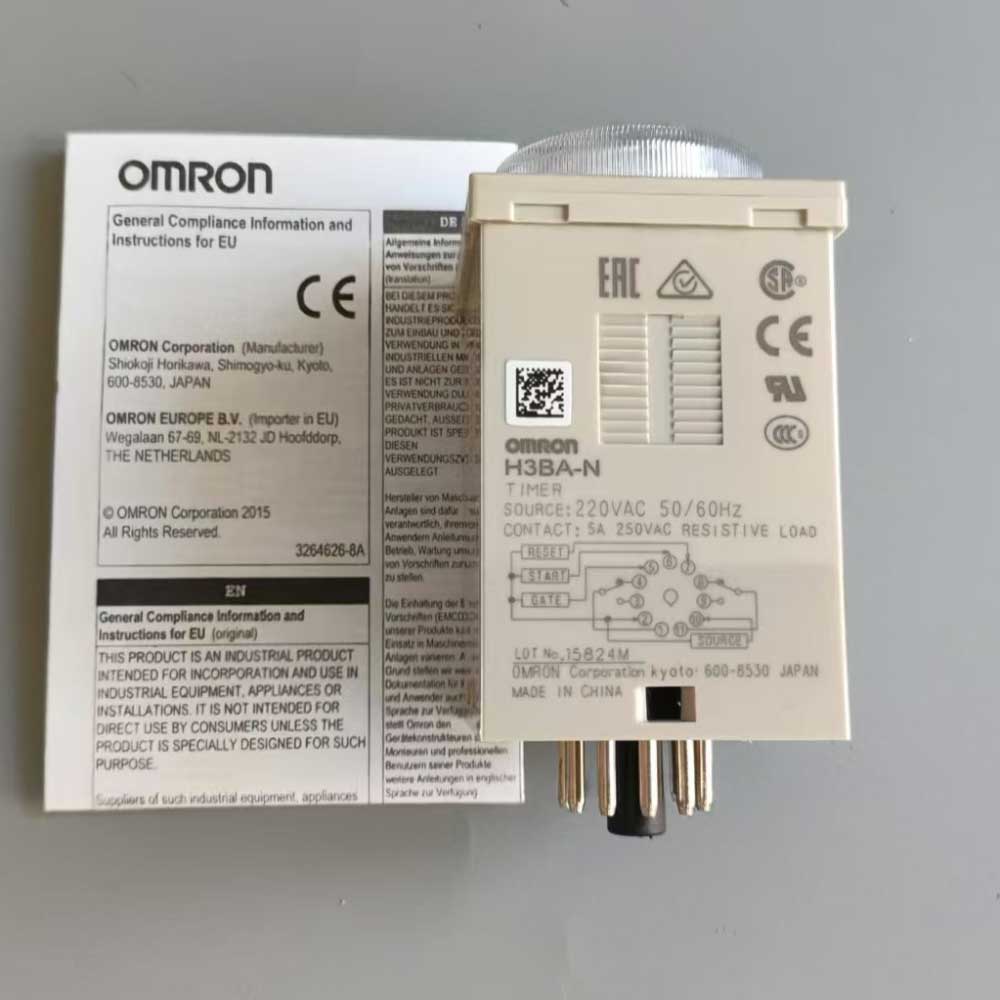

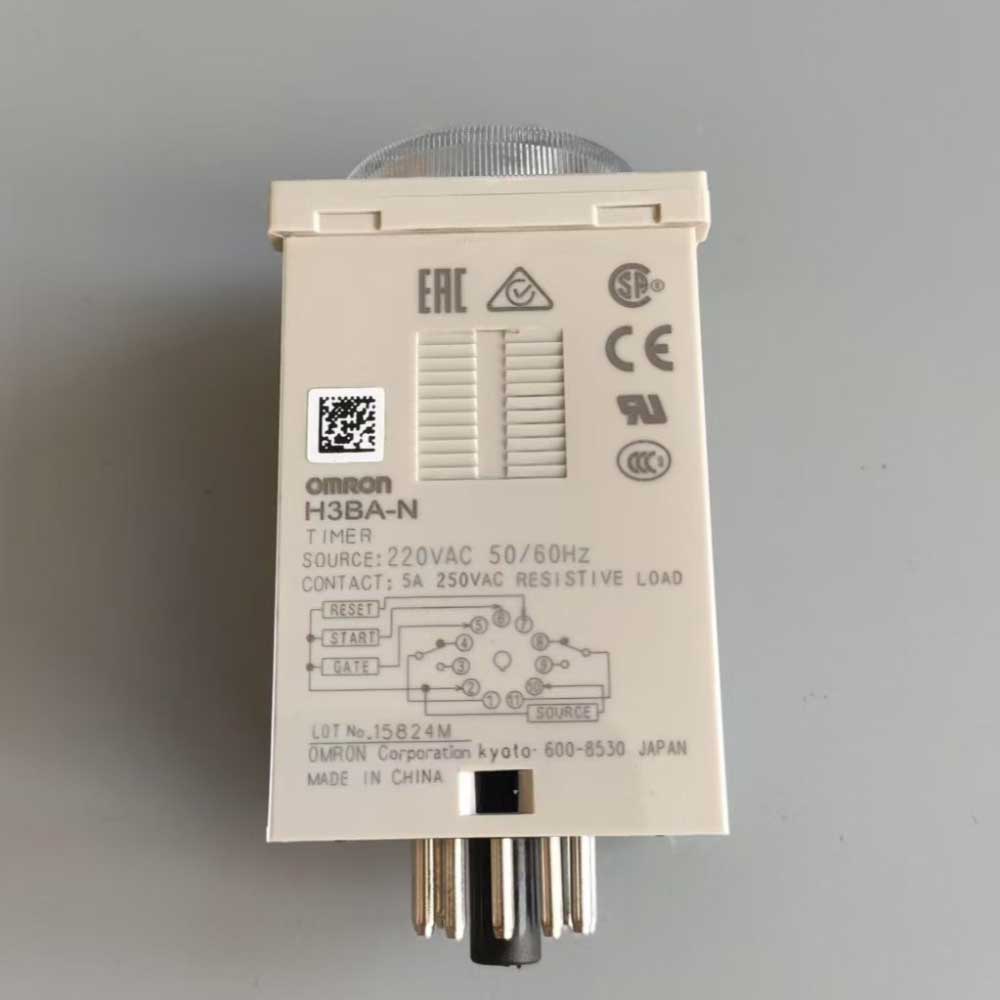

Omron H3BA‑N 220VAC Solid‑state Timer Relay

Product Overview

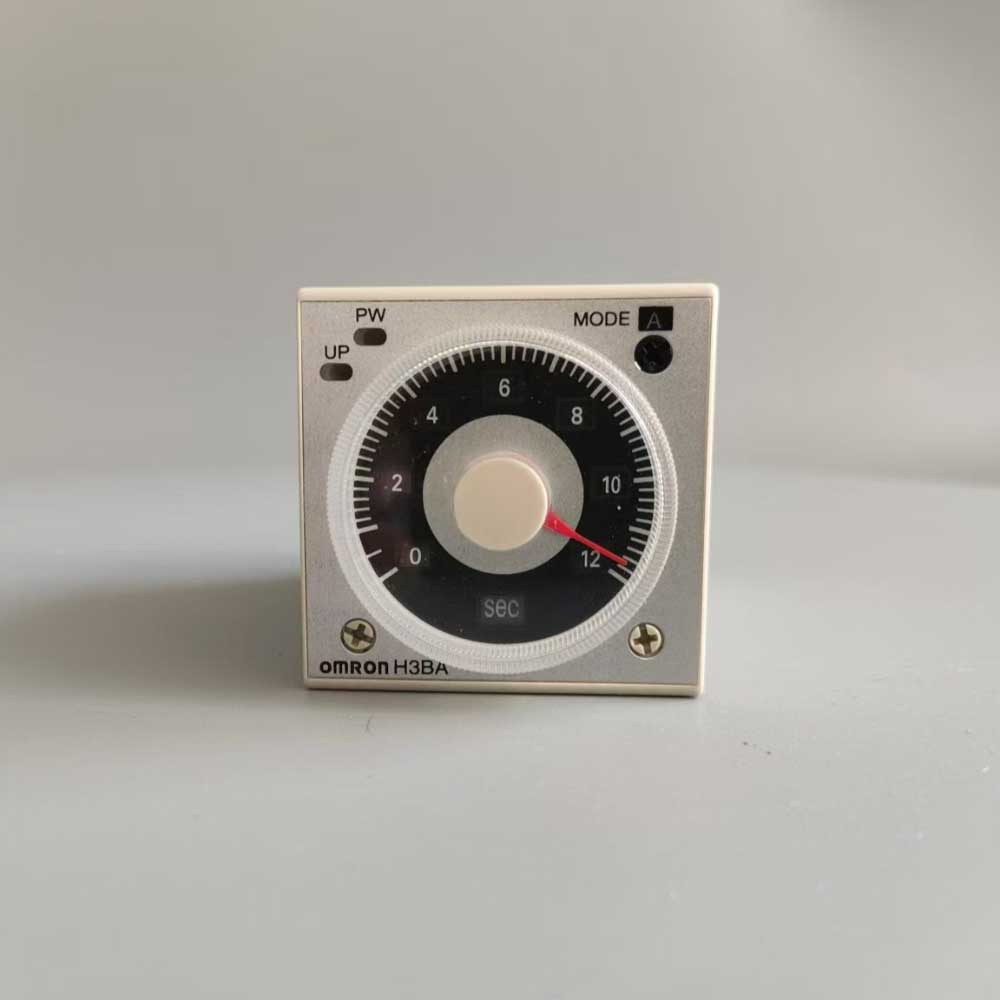

H3BA‑N is a popular multi‑mode solid‑state timer from Omron for industrial automation control systems. Rated supply voltage 220VAC 50/60Hz, contact rating 5A 250VAC resistive load. This 11‑pin plug‑in time relay supports multiple timing operation modes, flexible time setting by the top adjustment dial.

Key Product Features：

1. Multiple working timing modes to satisfy different automation sequencing requirements.

2. Stable timing accuracy, low reset time for continuous cyclic control.

3. Plug‑in 11‑pin design, easy installation with socket; support panel or DIN rail mounting.

4. Certified with CE, UL, EAC for global industrial machine integration.

5. Compact housing, suitable for control cabinet inside installation.

Main Technical Parameters

• Brand：OMRON
• Model：H3BA‑N
• Power Source：220VAC,50‑60Hz
• Contact Capacity：5A 250VAC (Resistive Load)

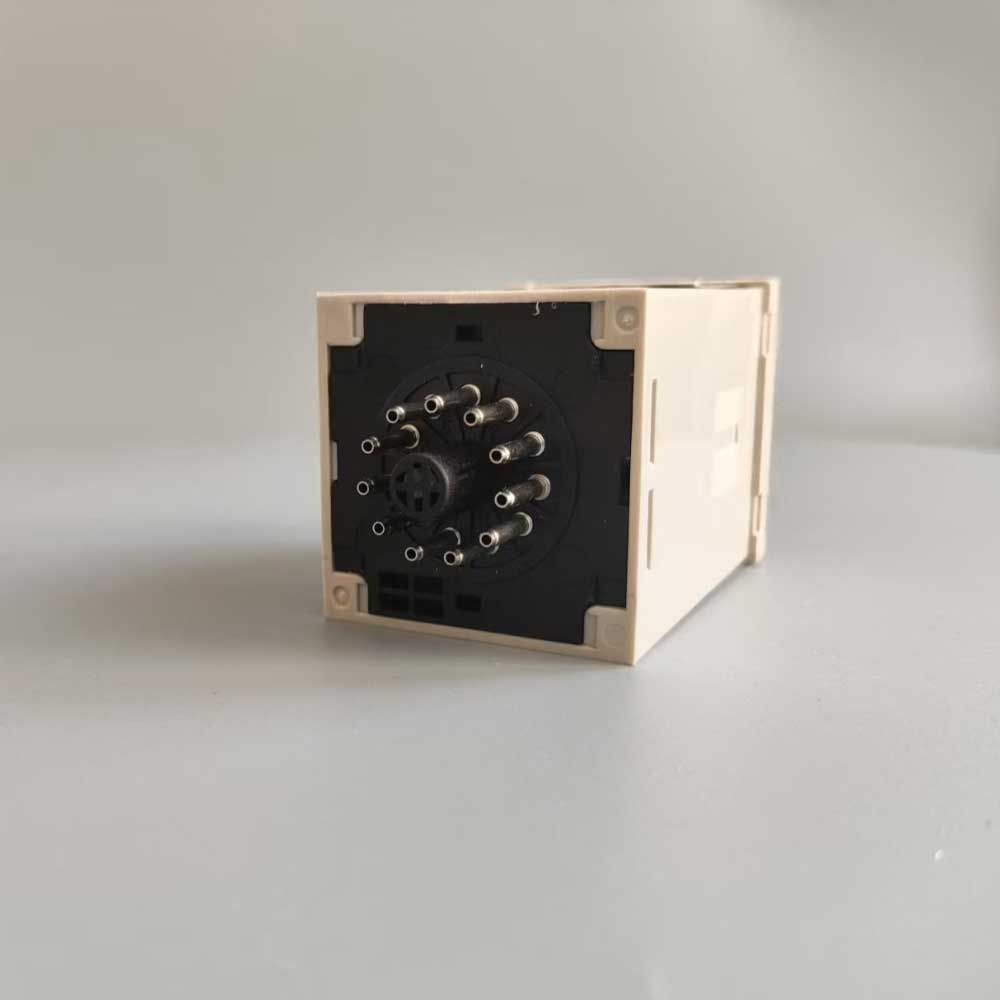

• Pin：11‑pin plug‑in
• Certificate：CE, UL, EAC
• Application：PLC control cabinet, conveyor, packaging machinery, automated production line.

Our Service Advantages

We supply original Omron industrial control timers & relays, stock available for fast shipment from Guangzhou. Small trial order is acceptable. Feel free to send inquiry for formal quotation and PI.
